Standard development by mechanical design engineers

Mechanical design engineers have been involved in actual mechanical design projects for many years and developed the standard.
Elimination of drawings of standard and purchased parts and laborsaving when browsing a manufacturer’s catalogs lead to a reduction in the design time.

Simplification by dividing into each projection plane

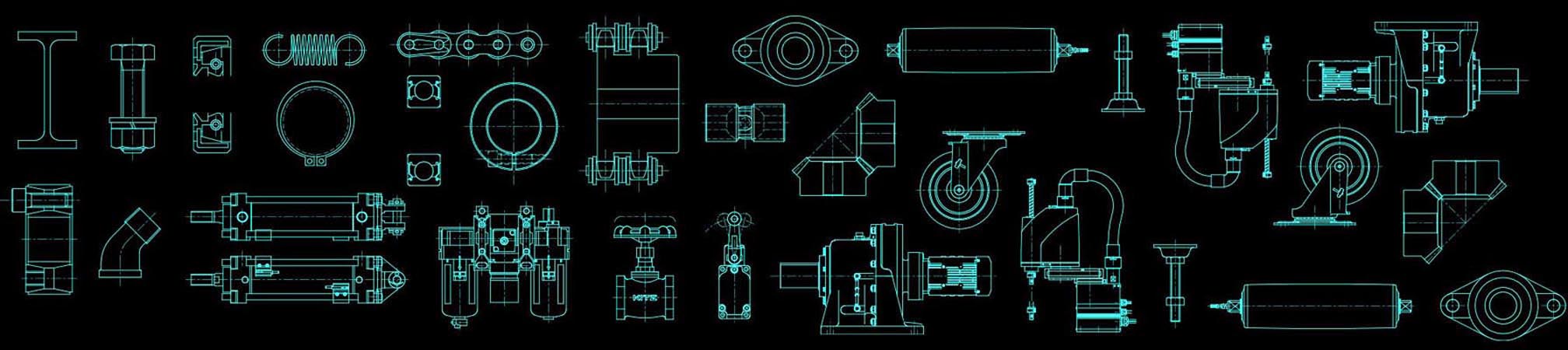

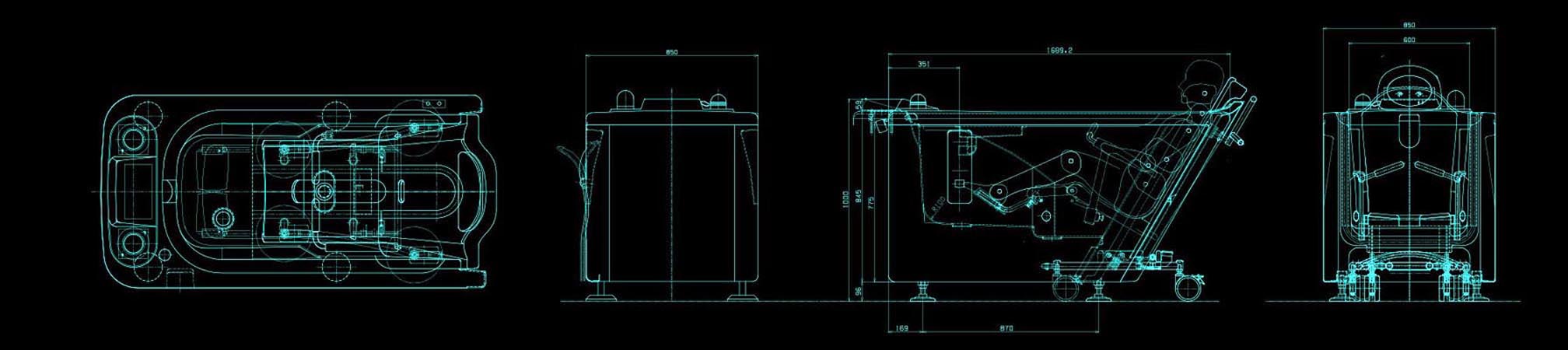

The data are included separately for each projection plane so that it can be pasted directly into the CAD drawing being drawn.

Full use of parametric technology

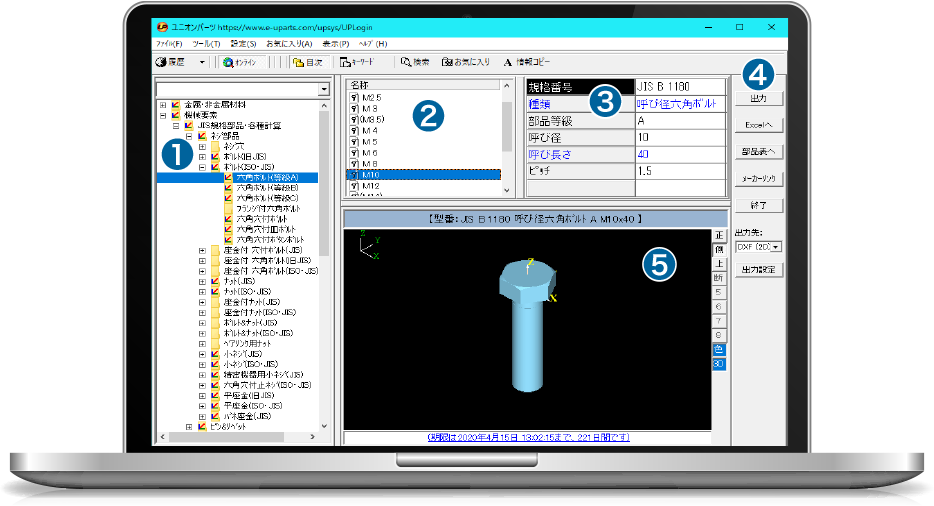

Since many drawings with the same shape and different lengths are parameterized, when the user selects a dimension value, a drawing with the required dimension value is immediately generated.

Display & output of 3D data as well

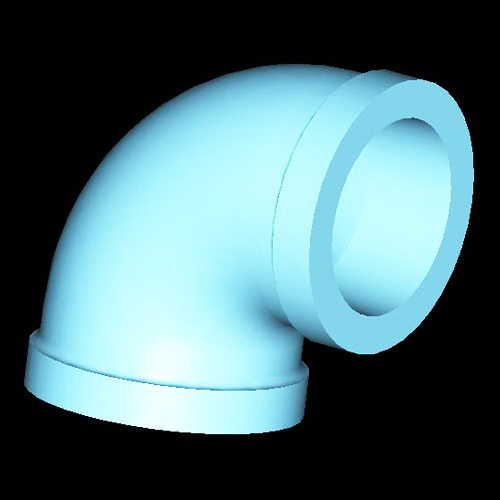

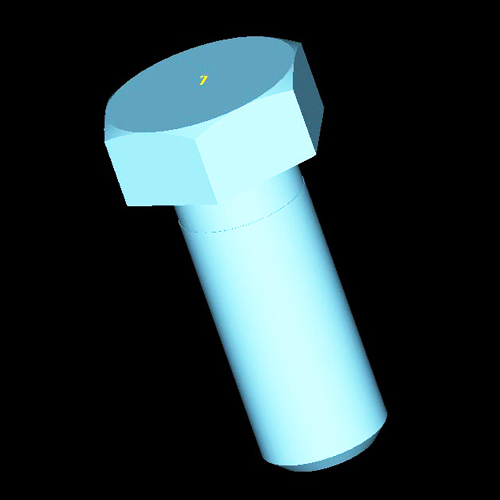

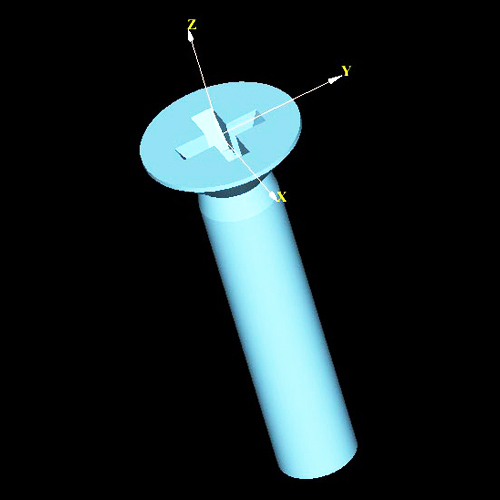

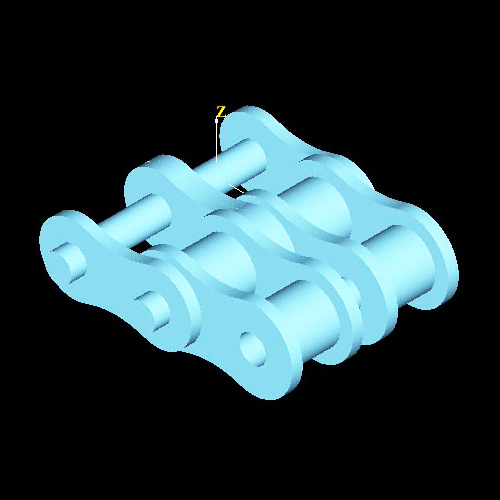

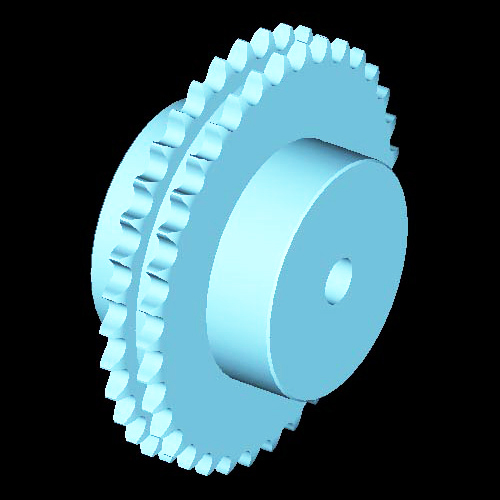

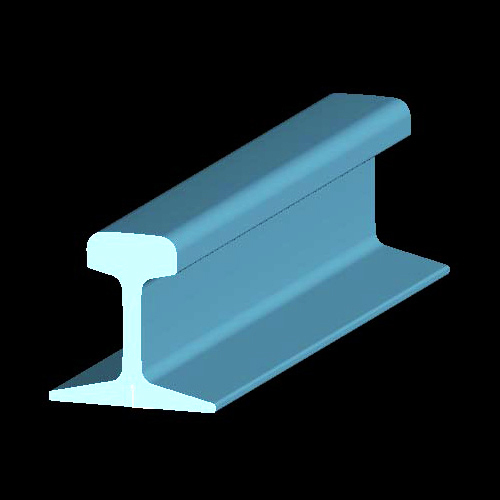

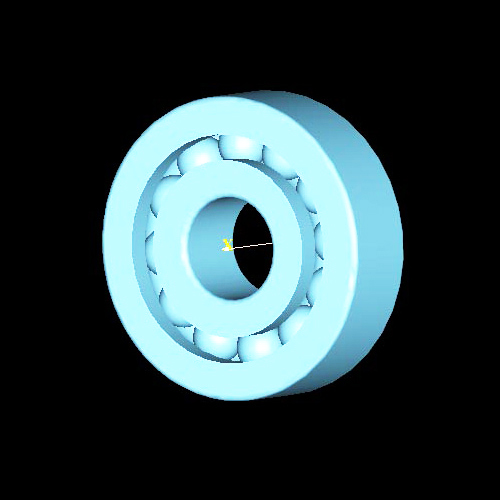

3D data are also available for important components including mechanical element parts. 3D data can be displayed on the same screen as 2D and downloaded in the IGES or SAT format.

Manufacturer link function

Since the data for each part are linked to the website of the manufacturer of that part, you can instantly browse the catalog of the manufacturer’s site.

Mechanical Design Handbook is included as standard

The Mechanical Design Handbook provides all the information necessary for the design. The manual contains separate sections on [Numerical Data Materials] and [Formulas for Mechanical Design]. The formulas can be used to calculate different values by actually entering data.
